07组合,第一套:R8S黑檀木+H300b定制版+NAIM CD5I [复制链接]

上一主题 下一主题
只看该作者 10 发表于: 2007-01-30

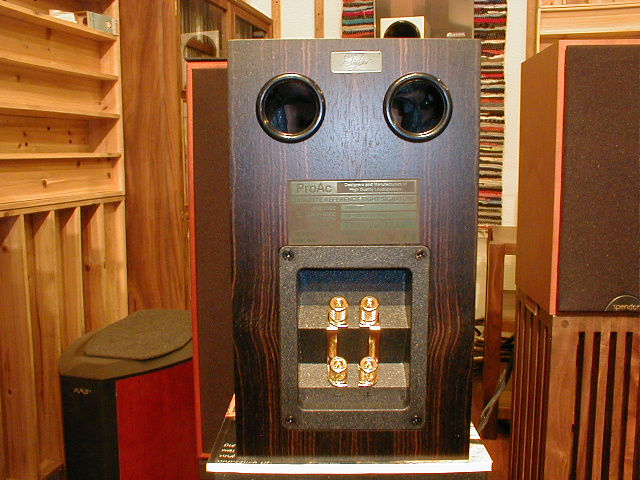

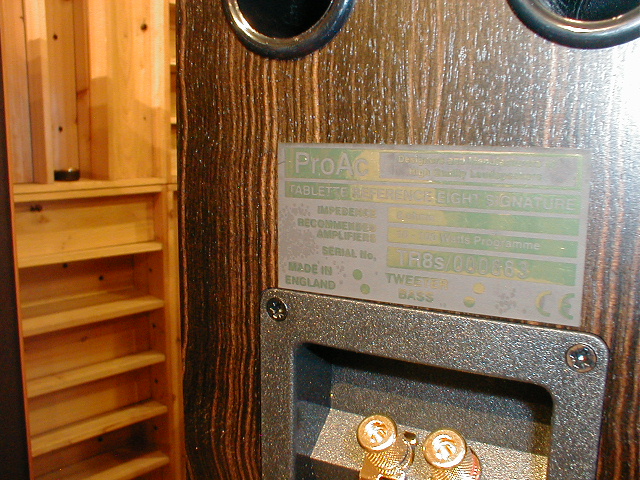

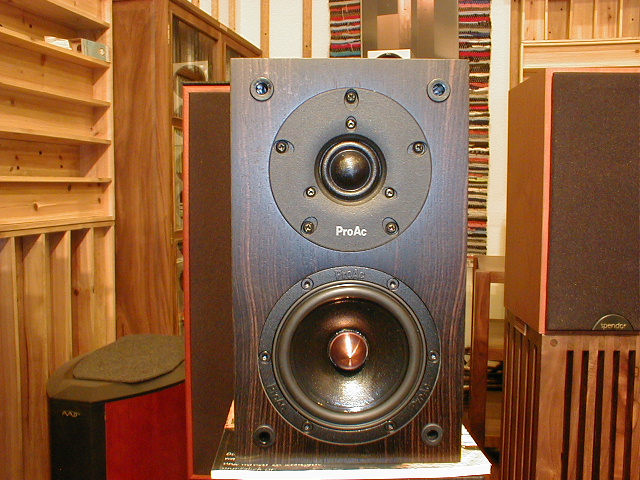

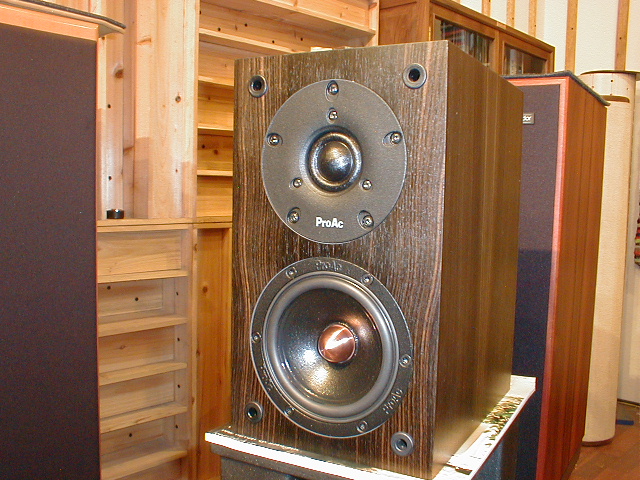

实物照片
享受生活,轻轻松松玩音响
玩音响,玩的就是电流和振动。
只看该作者 11 发表于: 2007-01-30
[删除]

图片:
[删除]

图片:
[删除]

图片:
[删除]

图片:
[删除]

图片:
[删除]

图片:
[删除]

图片:
[删除]

图片:
[
享受生活,轻轻松松玩音响
玩音响,玩的就是电流和振动。
只看该作者 12 发表于: 2007-01-30
享受生活,轻轻松松玩音响
玩音响,玩的就是电流和振动。
只看该作者 13 发表于: 2007-01-30
享受生活,轻轻松松玩音响
玩音响,玩的就是电流和振动。
只看该作者 14 发表于: 2007-01-30

The Tablette Reference Eight, launched in 2001, has proved a hugely successful restatement of the original Tablette design of 1979. Reborn in its earliest cabinet configuration but housing far more technically refined and powerful drive units, it produces a scale and quality of sound unimaginable over two decades ago. Now however, this enduring design scales new heights with the Reference Eight Signature.

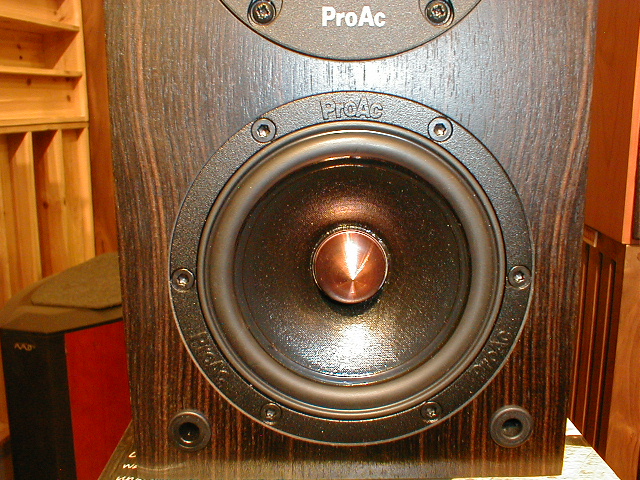

At the heart of this major leap forward is a remarkable new bass/midrange driver. Four times as expensive as the standard unit used in the Reference Eight, this new driver incorporates a neodymium bar magnet, copper rings and a copper phase plug. These components add up to vastly improved performance, with even greater linearity and lower distortion. The bass is more excitingly dynamic and the midrange considerably more open. Loading is by small twin reflex ports which reduce unwanted colouration.

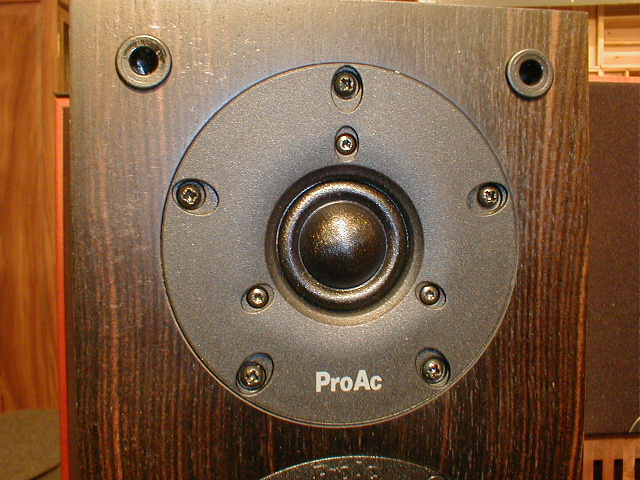

A high quality crossover network is coupled directly to the terminals to eradicate any deterioration in the signal paths. This redesigned board incorporates a larger bass inductor than the original Tablette and gives higher output with lower distortion. The crossover knits the midrange seamlessly to the output of the completely new tweeter, a sophisticated 1" soft dome unit with a large surround which produces an exceptionally flat response, outstanding smoothness and fine detail.

The cabinet itself is made from costly marine birch ply which is critically damped and tuned with high grade acoustic material. As ever with ProAc loudspeakers, the Reference Eight Signatures are completed by exquisite real wood veneer, but in keeping with their exclusivity are only available in the most exotic finishes.

The Tablette Reference Eight Signature is a definitive monitor level design. The remarkably flat frequency response is characterised by a smooth, natural and detailed output delivered with a surprising level of power, weight and scale. This diminutive powerhouse can be placed on shelves or ledges, but for true highend listening is best mounted on heavy rigid stands.

享受生活,轻轻松松玩音响
玩音响,玩的就是电流和振动。
只看该作者 15 发表于: 2007-01-30
Technical Info Close window
Nominal Impedance
8 ohms
Recommended Amplifiers
10 to 100 watts
Frequency Response
38hz to 30Khz
Sensitivity
86db linear for 1 watt at 1 metre
Bass/Midrange
4 1/2" long throw cone design with linear low distortion motor system, neodymium bar magnet,
copper rings and phase plug. ProAc diecast chassis.
Tweeter
1" soft silk dome exclusive to ProAc with special surround and inner chamber
Crossover
Finest components on dedicated circuit board. Multistrand oxygen-free cable throughout.

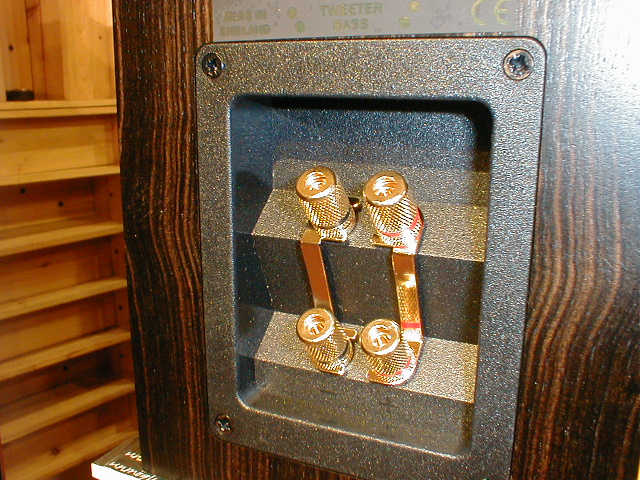

Split for optional bi-wiring and bi-amping.
Dimensions
10 1/2" (266mm) high
6" (152mm) wide
9" (228mm) deep
Mode
Stand/Shelf mounting
Grille

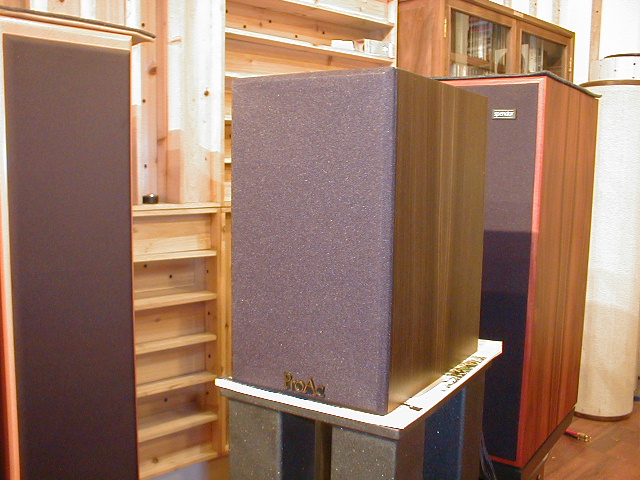

Acoustically transparent crimplene
Finish
Available in the following real wood veneers: Ebony, Maple, Bird\s Eye Maple, Cherry, Black Ash and Mahogany.
* Due to our policy of continuous improvement specifications are subject to change without notice.
享受生活,轻轻松松玩音响
玩音响,玩的就是电流和振动。
只看该作者 16 发表于: 2007-01-30
[删除] ?淼狦荂笐
@A羙j定y?
描述:full music的瓷座金脚300B管子
k_祯獈?k?
图片:
揪67fS
[
删除] y职??冢?
l )冣zΧ 7
描述:整流管是5AR4
?隘Q熨?
图片:
j燜 鱩怌f
[
删除] +洪?(Ⅹo
濦圫k峘焠
描述:依然是6SL7前级,6SN7推动
>??梽鴦?
图片:
?Y屔??
[
删除] (綜屩暧檜?
t柕?擧Y汛
图片:
B^F狓螦跷C
[
删除] 饂?縘暓漣
嗾翿丅U霚q
图片:
??棱?拓
[
删除] [糵詑桢!?
H300B

享受生活,轻轻松松玩音响
玩音响,玩的就是电流和振动。
只看该作者 17 发表于: 2007-01-30
[删除] 邩瘞蝤訋??
瓎?U異?
图片:
j?R嶲鵢擵
[
删除] 耟佀U?H?
罩子的变化是很大的,这样对放尘有一些好处。
享受生活,轻轻松松玩音响
玩音响,玩的就是电流和振动。
只看该作者 18 发表于: 2007-01-30

借用普通版本的机器的参数:

电子管:300B×2,6SL7×2,6SN7×2,5AR4×1 I?0j'螞

7R貕
