日本的欧亚德oyaide电源拖板 [复制链接]

OCB-1 DXs
Internal Wiring: AWG 14 X 2 high purity (6N) Copper
AC Outlet: SWO-DX (4 outlets)
Power Plug: P-029
Dimensions: W 120mm X L 120mm X H 60mm
Weight: 830g
Power Cable: L/i50 OFC
EX Cable Length: 2 meters

Oyaide Products
                        Made in Japan
欧亚德音响专用电源插座系列

　　　　　　　　　　　－接近完美的插座！

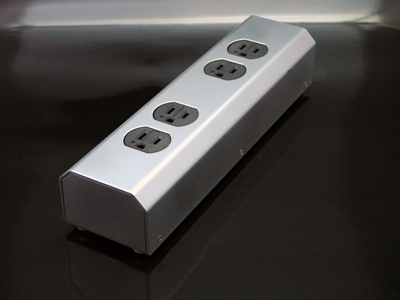

Power Distribution System

Designed for the Purist: Clean and Integrated Structure
Resonance characteristics of the chassis dominate the
eventual sound quality of audio equipment. With this in
mind, and with 25 years at the leading edge of audio
innovation, we simplified the structure of the MTB-4 and
MTB-6 to a minimum in order to avoid internal resonance
since every little component has its own resonance frequ-
-ency.

完美的设计，清晰完整的结构。底盘的共振特性决定了
最后的音频设备的音质。因为有这个认识，加上25年来
始终站在音频方面创新的最前沿，我们实现了MTB-4和
MTB-6结构的最简化，以避免内部的共振，因为每一个
小的零部件都有自己的共振频率。
We also conducted extensive research in selecting perfect
materials for each section, together with detailed analysis
of component compatibility,even down to the screws and was-
-hers. We went even further to harmonize the components by
applying our own proprietary heat treatment process to each
and every part.

我们对每个零件在理想材料选择上进行了广泛的调查，
并对零部件的兼容性进行详细的分析，甚至细到螺丝
钉和垫圈。我们甚至通过自己独有的热处理加工技术
对每个零部件进行处理，使所有的部分达到和谐。
Together with our own internal wiring system and original
super receptacles, we have realized the ultimate power di-
-stribution system for Audiophiles.

与我们自己的线材和插座相结合，最终为发烧友打造出了
MTB-4和MTB-6。有DX, GX,XXX三种型号供选择。

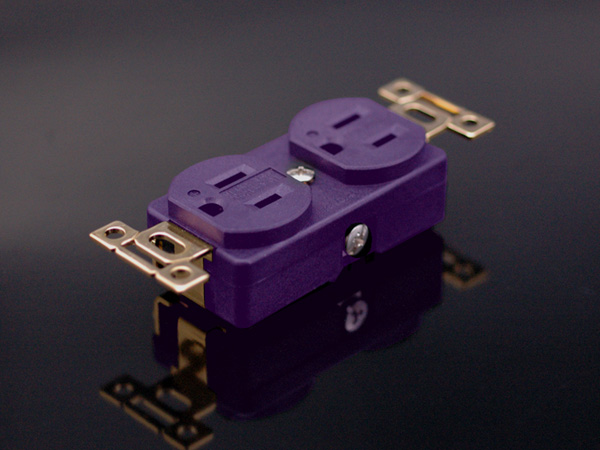

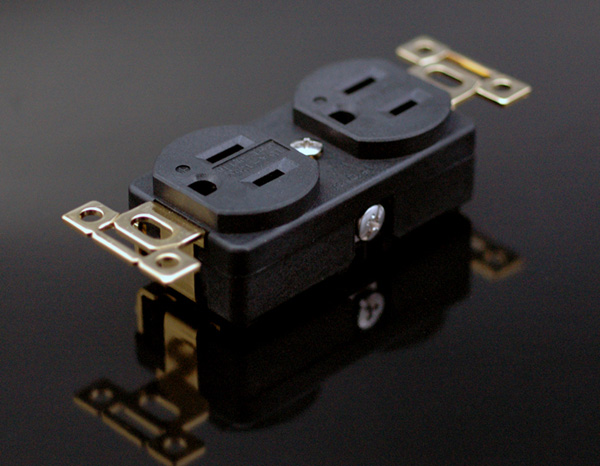

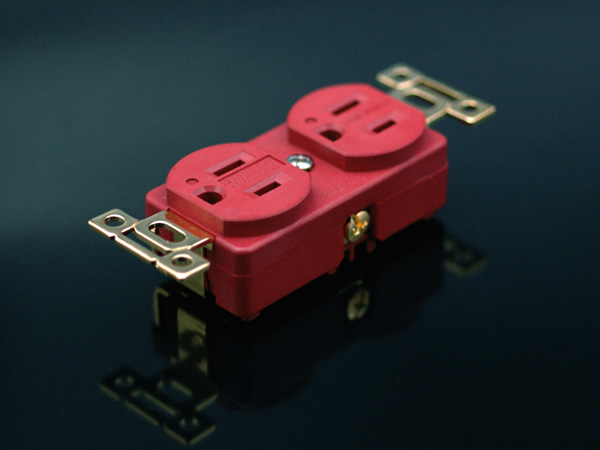

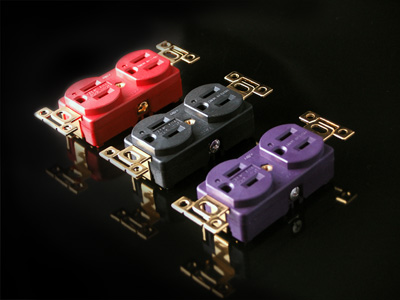

SWO Series

The importance of high quality power supply connections is now widely accepted. Many
enthusiasts install dedicated power lines for their hi fi systems and no longer question
the importance of the quality of the receptacle fitted to the wall. Conventional "hospital
grade" connectors can improve the strength of the mechanical connection, but they are far
from ideal for realizing the best sound quality.

目前，高品质电源线已经被广泛接受了。许多发烧友为他们的HI-FI系统安装了
专业的电源线，也就不再关心墙插的重要性。常规的“医院级”连接器可以
改善机械连接法的承受力，但是它们离完美的声音有很大距离。

Our objective was to develop receptacles whose sole purpose was to deliver the highest sound
quality possible. Every part has been designed with this in mind. Extensive research into the
effects of plating methods has yielded three equally valid but different types of sound for you
to choose from. The entire series is non-magnetic to avoid any disturbance from magnetic fields
我们的目标是发展那些可以释放高音质的插座，我们已经有了每个部分的设计理念。电镀方法的广泛研究已产生出三种同有效的不同声音供你选择。本系列的产品采用
了无磁性技术，这样可以避免其他有磁性事物的干扰。

Base Material 基本材料
Highly (twice) polished deoxidized phosphor bronze
for the most secure contact (20 amps).
高度抛光纯铜，接触非常安全。

Mounting Bracket 固定架
24 Karat plated brass fittings for strength and durability.
24K镀金黄铜配件承受力强、耐用。

Body / Insulator 外壳/绝缘层
Glass filled nylon for high rigidity and resonance control and safe insulation.
外壳用的是玻璃与尼龙相结合，硬度强，能吸收共鸣，绝缘性能好。

SWO-DX Extra thick (1.5 micron) Silver base plating
with Rhodium plating (0.3 micron) to finish. Surface
is thoroughly (twice) polished before each plating
process
1.5微米加厚镀银再加0.3微米镀铑，
在镀银镀铑前做过两次的打磨抛光。

SWO-GX Extra thick (2 micron) 24K direct Gold plating.
Surface is thoroughly (twice) polished before each
plating process.

24K加厚2微米镀黄金，在镀黄金前做过两次的打磨抛光。

SWO-XXX Extra thick (1.5 micron) 24K Gold plating with
Palladium plating (0.3 micron) to finish. Surface is
thoroughly (twice) polished before each plating process.
1.5微米加厚24K金加0.3微米的镀钯。电镀前做过两次打磨抛光。

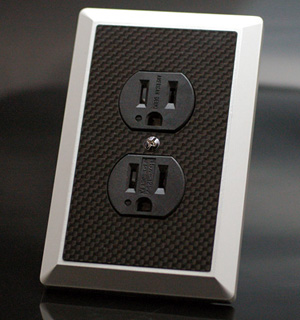

WPC-XXX系列

13mm thick solid aluminum machined from a solid block
for rigidity and resonance absorption mates perfectly
with our SWO series receptacles。

面板为13mm厚的铝板，高硬度，能吸收共鸣，
配的插座是SWO系列。

超级毒品啊，目前只能欣赏了
